Dynamic Time Warping#
import matplotlib.pyplot as plt
import numpy
import scipy
import scipy.spatial
from mirdotcom import mirdotcom
mirdotcom.init()
In MIR, we often want to compare two sequences of different lengths. For example, we may want to compute a similarity measure between two versions of the same song. These two signals, \(x\) and \(y\), may have similar sequences of chord progressions and instrumentations, but there may be timing deviations between the two. Even if we were to express the two audio signals using the same feature space (e.g. chroma or MFCCs), we cannot simply sum their pairwise distances because the signals have different lengths.
As another example, you might want to align two different performances of the same musical work, e.g. so you can hop from one performance to another at any moment in the work. This problem is known as music synchronization (FMP, p. 115).
Dynamic time warping (DTW) (Wikipedia; FMP, p. 131) is an algorithm used to align two sequences of similar content but possibly different lengths.
Given two sequences, \(x[n], n \in \{0, ..., N_x - 1\}\), and \(y[n], n \in \{0, ..., N_y - 1\}\), DTW produces a set of index coordinate pairs \(\{ (i, j) ... \}\) such that \(x[i]\) and \(y[j]\) are similar.
We will use the same dynamic programming approach described in the notebooks Dynamic Programming and Longest Common Subsequence.
Example#
Create two arrays, \(x\) and \(y\), of lengths \(N_x\) and \(N_y\), respectively.
x = [0, 4, 4, 0, -4, -4, 0]
y = [1, 3, 4, 3, 1, -1, -2, -1, 0]
nx = len(x)
ny = len(y)

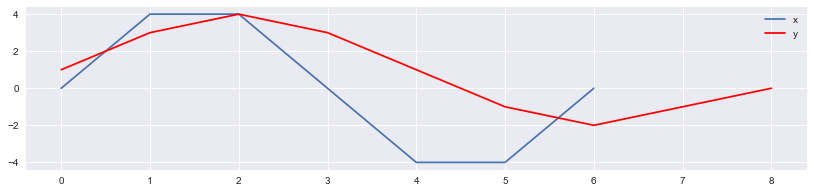

plt.plot(x)
plt.plot(y, c="r")
plt.legend(("x", "y"))
<matplotlib.legend.Legend at 0x108828210>
In this simple example, there is only one value or “feature” at each time index. However, in practice, you can use sequences of vectors, e.g. spectrograms, chromagrams, or MFCC-grams.
Distance Metric#
DTW requires the use of a distance metric between corresponding observations of x and y. One common choice is the Euclidean distance (Wikipedia; FMP, p. 454):
scipy.spatial.distance.euclidean([0, 0], [3, 4])
5.0
scipy.spatial.distance.euclidean([0, 0], [5, 12])
13.0
Another choice is the Manhattan or cityblock distance:
scipy.spatial.distance.cityblock([0, 0], [3, 4])
7
scipy.spatial.distance.cityblock([0, 0], [5, 12])
17
Another choice might be the cosine distance (Wikipedia; FMP, p. 376) which can be interpreted as the (normalized) angle between two vectors:
scipy.spatial.distance.cosine([1, 0], [100, 0])
0.0
scipy.spatial.distance.cosine([1, 0, 0], [0, 0, -1])
1.0
scipy.spatial.distance.cosine([1, 0], [-1, 0])
2.0
For more distance metrics, see scipy.spatial.distance.
Step 1: Cost Table Construction#
As described in the notebooks Dynamic Programming and Longest Common Subsequence, we will use dynamic programming to solve this problem. First, we create a table which stores the solutions to all subproblems. Then, we will use this table to solve each larger subproblem until the problem is solved for the full original inputs.
The basic idea of DTW is to find a path of index coordinate pairs the sum of distances along the path \(P\) is minimized:
The path constraint is that, at \((i, j)\), the valid steps are \((i+1, j)\), \((i, j+1)\), and \((i+1, j+1)\). In other words, the alignment always moves forward in time for at least one of the signals. It never goes forward in time for one signal and backward in time for the other signal.
Here is the optimal substructure. Suppose that the best alignment contains index pair (i, j), i.e., x[i] and y[j] are part of the optimal DTW path. Then, we prepend to the optimal path
We create a table where cell (i, j) stores the optimum cost of dtw(x[:i], y[:j]), i.e. the optimum cost from (0, 0) to (i, j). First, we solve for the boundary cases, i.e. when either one of the two sequences is empty. Then we populate the table from the top left to the bottom right.
def dtw_table(x, y):
nx = len(x)
ny = len(y)
table = numpy.zeros((nx + 1, ny + 1))
# Compute left column separately, i.e. j=0.
table[1:, 0] = numpy.inf
# Compute top row separately, i.e. i=0.
table[0, 1:] = numpy.inf
# Fill in the rest.
for i in range(1, nx + 1):
for j in range(1, ny + 1):
d = scipy.spatial.distance.euclidean([x[i - 1]], [y[j - 1]])
table[i, j] = d + min(table[i - 1, j], table[i, j - 1], table[i - 1, j - 1])
return table
table = dtw_table(x, y)
Let’s visualize this table:
print(" ", "".join("%4d" % n for n in y))
print(" +" + "----" * (ny + 1))
for i, row in enumerate(table):
if i == 0:
z0 = ""
else:
z0 = x[i - 1]
print(("%4s |" % z0) + "".join("%4.0f" % z for z in row))
1 3 4 3 1 -1 -2 -1 0
+----------------------------------------
| 0 inf inf inf inf inf inf inf inf inf
0 | inf 1 4 8 11 12 13 15 16 16
4 | inf 4 2 2 3 6 11 17 20 20
4 | inf 7 3 2 3 6 11 17 22 24
0 | inf 8 6 6 5 4 5 7 8 8
-4 | inf 13 13 14 12 9 7 7 10 12
-4 | inf 18 20 21 19 14 10 9 10 14
0 | inf 19 21 24 22 15 11 11 10 10
The time complexity of this operation is \(O(N_x N_y)\). The space complexity is \(O(N_x N_y)\).
Step 2: Backtracking#
To assemble the best path, we use backtracking (FMP, p. 139). We will start at the end, \((N_x - 1, N_y - 1)\), and backtrack to the beginning, \((0, 0)\).
Finally, just read off the sequences of time index pairs starting at the end.
def dtw(x, y, table):
i = len(x)
j = len(y)
path = [(i, j)]
while i > 0 or j > 0:
minval = numpy.inf
if table[i - 1, j] < minval:
minval = table[i - 1, j]
step = (i - 1, j)
if table[i][j - 1] < minval:
minval = table[i, j - 1]
step = (i, j - 1)
if table[i - 1][j - 1] < minval:
minval = table[i - 1, j - 1]
step = (i - 1, j - 1)
path.insert(0, step)
i, j = step
return path
path = dtw(x, y, table)
path
[(0, 0),
(1, 1),
(2, 2),
(2, 3),
(3, 3),
(3, 4),
(4, 5),
(4, 6),
(5, 7),
(6, 7),
(7, 8),
(7, 9)]
The time complexity of this operation is \(O(N_x + N_y)\).
As a sanity check, compute the total distance of this alignment:
sum(abs(x[i - 1] - y[j - 1]) for (i, j) in path if i >= 0 and j >= 0)
10
Indeed, that is the same as the cumulative distance of the optimal path computed earlier:
table[-1, -1]
10.0
