Evaluation Example: Onset Detection

Evaluation Example: Onset Detection#

import IPython.display as ipd
import matplotlib.pyplot as plt
import librosa.display
import mir_eval
import numpy

from mirdotcom import mirdotcom

mirdotcom.init()

Documentation: mir_eval.onset

Evaluation method: determine which estimated onsets are “correct”, where correctness is defined as being within a small window of a reference onset.

mir_eval finds the largest feasible set of matches using the Hopcroft-Karp algorithm. (See _bipartite_match.)

Let’s evaluate an onset detector on the following audio:

filename = mirdotcom.get_audio("simple_piano.wav")
y, sr = librosa.load(filename)

ipd.Audio(y, rate=sr)

Detect Onsets#

Estimate the onsets in the signal using onset_detect:

est_onsets = librosa.onset.onset_detect(y=y, sr=sr, units="time")

est_onsets

array([0.27863946, 0.510839  , 0.81269841, 1.021678  , 1.32353741,
       1.50929705, 1.83437642, 2.02013605, 2.36843537, 2.53097506,
       2.87927438, 3.0185941 , 3.36689342, 3.59909297])

Load a fictional reference annotation.

ref_onsets = numpy.array([0, 0.270, 0.510, 1.02, 1.50, 2.02, 2.53, 3.01])

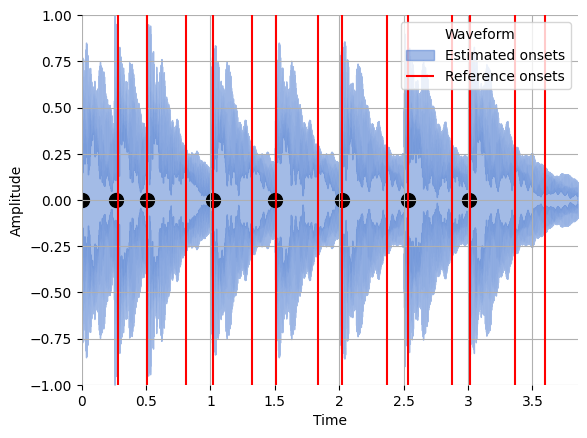

Plot the estimated and reference onsets together.

librosa.display.waveshow(y, sr=sr, alpha=0.5)
plt.vlines(est_onsets, -1, 1, color="r")
plt.scatter(ref_onsets, numpy.zeros_like(ref_onsets), color="k", s=100)
plt.legend(["Waveform", "Estimated onsets", "Reference onsets"])
plt.ylabel("Amplitude")

Text(22.472222222222214, 0.5, 'Amplitude')
../../_images/2c0f769e9dda5b1e93a44dba1ace5baf9c7414031690b49460920603da18c6a0.png

Evaluate#

Evaluate using mir_eval.onset.evaluate:

mir_eval.onset.evaluate(ref_onsets, est_onsets)

OrderedDict([('F-measure', 0.6363636363636364),
             ('Precision', 0.5),
             ('Recall', 0.875)])

Out of a possible 8 reference onsets, 7 estimated onsets matched, i.e. recall = 7/8 = 0.875.

Out of a possible 14 estimated onsets, 7 reference onsets matched, i.e. precision = 7/14 = 0.5.

The default matching tolerance is 50 milliseconds. To reduce the matching tolerance, adjust the window keyword parameter:

mir_eval.onset.evaluate(ref_onsets, est_onsets, window=0.002)

OrderedDict([('F-measure', 0.36363636363636365),
             ('Precision', 0.2857142857142857),
             ('Recall', 0.5)])
